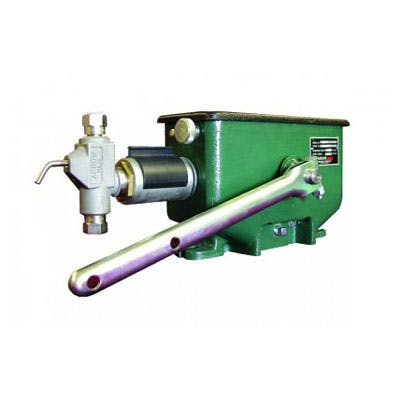

10 SERIES BEAM PUMP
The Arrow 10 Series, or more commonly referred to as the Beam Pump, is a positive displacement pump that is powered by a direct connection with rod, 1/4” pipe or cable to the walking beam or rod line. The 10 Series pumps on the upstroke of the walking beam and then returns to its set position on the downstroke.
Key Specs
Maximum flow rate dependent on pumpjack’s strokes per minute
Governing adjustment knob allows for adjustable flow rates
Head assembly: Single or dual head configurations available
Plunger sizes: 3/16”,1/4”, 3/8”, 1/2”, 3/4” or 1”
OVERVIEW
Precision Pumping for Demanding Applications
The 10 Series Beam Pump by Plainsman Mfg. offers dependable performance and unmatched versatility for chemical injection needs.
The Arrow 10 Series Beam Pump is designed for seamless integration with pumpjacks, offering precise chemical injection with customizable flow rates and durable components. Built for tough conditions, it’s the ideal choice for reliable and efficient operations.
Features & Benefits
- Maximum flow rate dependent on pumpjack’s strokes per minute
- Governing adjustment knob allows for adjustable flow rates
- Head assembly: Single or dual head configurations available
- Plunger sizes: 3/16”,1/4”, 3/8”, 1/2”, 3/4” or 1”
- Packing & O-rings: Any combination of Buna-N, Fluorosilicone, Hard, Kalrez, Teflon or Viton
- Standard injector heads are supplied with ductile iron body and stainless steel trim
- Complete stainless steel configuration is optional
- Metal-to-metal seats available as alternatives to standard injector head parts
