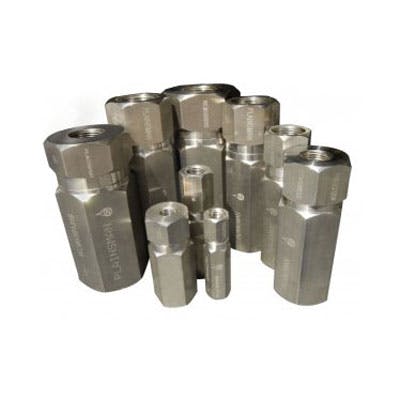

BALL CHECK VALVES

BALL CHECK VALVES

Ball Check Valves are reliable and field-proven.

  • Metal to metal seats
  • Simple design makes it easy to install and maintain, with only two moving parts
  • Low cracking pressure makes it suitable for vacuum or low-pressure applications
  • Lower price component to replace the alternatives in the same application

OVERVIEW

Affordable, Easy-to-Maintain Backflow Prevention

Plainsman Ball Check Valves provide reliable, field-proven flow control with a simple, two-part design, ensuring easy installation and maintenance. 1 Featuring metal-to-metal seats and low cracking pressure (3-5 psi), these valves are ideal for vacuum or low-pressure applications. 2 Designed for cost-effective manufacturing, they offer a budget-friendly alternative without sacrificing performance.

Features & Benefits

  • Metal to metal seats
  • Simple design makes it easy to install and maintain, with only two moving parts
  • Low cracking pressure makes it suitable for vacuum or low-pressure applications
  • Lower price component to replace the alternatives in the same application
  • Designed for manufacturing to keep costs down

Technical Specifications

  • Cracking pressure: 3-5 psi [20-35 kPa]
  • Viton seals standard
  • Temperature Range: based on viton seal, -15°F to 400°F (-26°C to 205°C)
  • Spring: stainless steel, (inconel optional)
  • Ball: stainless steel
  • Spring Retainer: CF8M stainless
