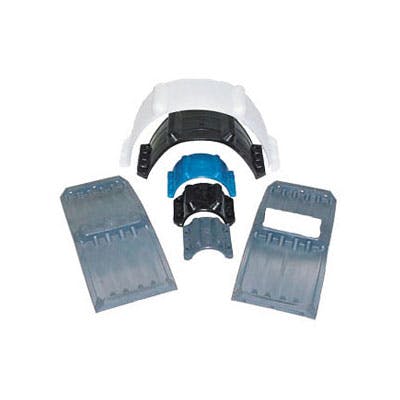

POLYETHYLENE CASING INSULATORS
Polyethylene Casing Insulators for all your pipe insulation needs.
Injection molded, virgin high density polyethylene
Low friction, high abrasion resistance allows the carrier pipe to slide easily and free of damage into the casing pipe.
Pipe size range from 2″ to 48″
Custom extended runner heights available to 2-1/2″
OVERVIEW
High Strength, Low Absorption, Superior Insulation
Engineered for demanding applications, these polyethylene casing insulators boast high dielectric and compressive strength, low water absorption (<0.01%), and a maximum operating temperature of 225°F. Their high abrasion resistance and insulating properties ensure long-lasting protection against damage and corrosion. Available in a wide range of sizes with custom runner heights.
Features & Benefits
- Injection molded, virgin high density polyethylene
- Low friction, high abrasion resistance allows the carrier pipe to slide easily and free of damage into the casing pipe.
- Low moisture absorption and high insulating value of polyethylene electrically insulates the carrier and pipe and protects it from electrical current induced corrosion
- Pipe size range from 2″ to 48″
- Custom extended runner heights available to 2-1/2″
Technical Specifications
- Dielectric Strength 450-500 Volts/Mil
- Compressive Strength 3200 psi
- Tensile Strength 3100-5100 psi
- Water Absorption <0.01%
Max Operating Temperature
- 225*F
